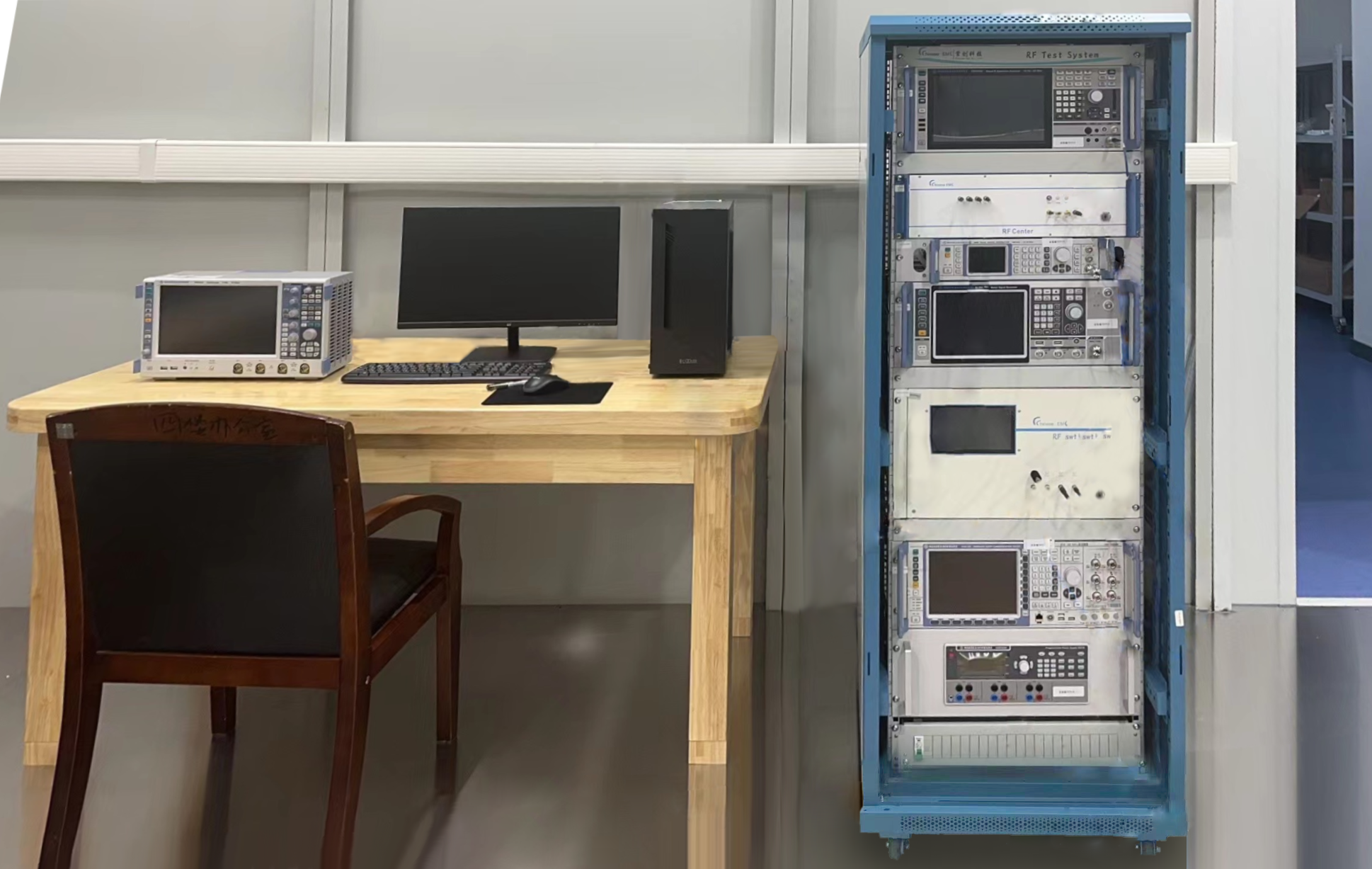

一.系統能能力
軟件平臺 | 區域認證 | 標準 | 測試內容 |
2345G?RF?Tester?V1.01 | 歐盟CE | EN301511 | GSM |
EN301908-1/301908-2 | WCDMA |
ETSI?EN?301908-13(3GPP?TS?36.521-1) | LTE<E?CA |
EN301908-25(3GPP?TS?38.521-1) | NR?SA&NR?CA |
EN301908-25(3GPP?TS?38.521-3) | NR?NSA |
美國FCC | FCC?Part22/24 | GSM |
FCC?Part22/24/27 | WCDMA |
FCC?Part22/24/27 | LTE<E?CA |
FCC?Part?24?Subpart?E | NR?SA&NR?NSA&NR?CA |
中國SRRC | YD/T?1215-2006 | GSM |
YD/T?1548.1-2009/3GPP?TS?34.121-1 | WCDMA |
YD/T?2576.2-2013/YD/T?2578.2-2013 | LTE<E?CA |
GB/T?12572-2008(3GPP?TS?38.521-1) | NR?SA&NR?CA |
GB/T?12572-2008(3GPP?TS?38.521-3) | NR?NSA |
二.優勢特點及適用范圍：
1.軟件支持多廠商多種儀器型號；并自帶校準功能。
2.自動化切換測試鏈路，減少手動操作；并且支持GSM、WCDMA、LTE、NR認證測試。
3.一鍵自動化測試和報告生成、客戶可自行設計報告，并支持Excel、PDF、Word等多種報告格式。
4.軟件測試項開放可編輯：可自行根據規則配置自己所腳本；支持?jǐn)?shù)據庫及數據分析。
5.系統擴展性強，支持客戶定制化需求。
三.系統連接示意圖：
四.機柜前部布局圖
五.機柜后部布局圖
六.標準
1.CE標準——GSM
| ?EN30151 |
測試項 | GSM | 射頻開關 | 模擬源 | 矢量源 | 頻譜儀 | 綜測儀 |
1）Transmitter-Frequency?error?and?phase?error | √ | √ |
|
|
| √ |
2）Transmitter-Frequency?error?under?multipath?and?interference?conditions | √ | √ |
|
|
| √ |
3）Transmitter?output?power?and?burst?timing | √ | √ |
|
|
| √ |
4）Transmitter-Output?RF?spectrum | √ | √ |
|
|
| √ |
5）Conducted?spurious?emissions-MS?allocated?a?channel | √ | √ |
|
| √ | √ |
6）Conducted?spurious?emissions-MS?in?idle?mode | √ | √ |
|
| √ | √ |
7）Receiver?Blocking?and?spurious?response-speech?channels | √ | √ | √ |
|
| √ |
8）Receiver?Adjacent?Channel?Selectivity(ACS) | √ | √ |
| √ |
| √ |
9）Receiver?Intermodulation?Characteristics | √ | √ | √ | √ |
| √ |
10）Minimum?Input?Level | √ | √ |
|
|
| √ |
11）Receiver?sensitivity | √ | √ |
|
|
| √ |
2.CE標準(WCDMA)
EN301908-1/EN301908-2 |
測試項 | WCDMA | 射頻開關 | 模擬源 | 矢量源 | 頻譜儀 | 綜測儀 |
1）Transmitter?maximum?output?power | √ | √ |
|
|
| √ |
2）Transmitter?spectrum?emission?mask | √ | √ |
|
|
|
|
3）Transmitter?spurious?emissions | √ | √ |
|
| √ | √ |
4）Receiver?spurious?emissions | √ | √ |
|
| √ | √ |
5）Transmitter?minimum?output?power | √ | √ |
|
|
| √ |
6）Adjacent?Channel?Selectivity(ACS) | √ | √ |
| √ |
| √ |
7）Receiver?spurious?response | √ | √ | √ |
|
| √ |
8）Receiver?intermodulation?characteristics | √ | √ | √ | √ |
| √ |
9）Receiver?blocking?characteristics(In-band) | √ | √ |
| √ |
| √ |
10）Receiver?blocking?characteristics(Out-band) | √ | √ | √ |
|
| √ |
11）Receiver?blocking?characteristics(Narrow-band) | √ | √ | √ |
|
| √ |
12）Out-of-synchronization?handling?of?output?power | √ | √ |
|
|
| √ |
13）Transmitter?Adjacent?Channel?Leakage?power?Ratio(ACLR) | √ | √ |
|
|
| √ |
14）Receiver?Reference?Sensitivity?level | √ | √ |
|
|
| √ |
3.CE標準(LTE)
EN301908-13 |
測試項 | LTE | 射頻開關 | 模擬源 | 矢量源 | 頻譜儀 | 綜測儀 |
1）Transmitter?Maximum?Output?Power | √ | √ |
|
|
| √ |
2）Transmitter?Minimum?Output?Power | √ | √ |
|
|
| √ |
3）Transmitter?Spectrum?Emission?Mask | √ | √ |
|
|
| √ |
4）Transmitter?Adjacent?Channel?Leakage?Power?Ratio | √ | √ |
|
|
| √ |
5）Transmitter?Spurious?Emissions | √ | √ |
|
| √ | √ |
6）Occupied?Channel?Bandwidth | √ | √ |
|
|
| √ |
7）Transmitter?unwanted?emission?in?the?OOB?domain | √ | √ |
|
| √ | √ |
8）Transmitter?unwanted?emission?in?the?spurious?domain | √ | √ |
|
| √ | √ |
9）Receiver?spurious?emissions | √ | √ |
|
| √ | √ |
10）Receiver?Adjacent?Channel?Selectivity(ACS) | √ | √ |
| √ |
| √ |
11）Blocking?Characteristics(In-Band) | √ | √ |
| √ |
| √ |
12）Blocking?Characteristics(Out-Of-Band) | √ | √ | √ |
|
| √ |
13）Blocking?Characteristics(Narrow-Band) | √ | √ | √ |
|
| √ |
14）Receiver?Intermodulation?Characteristics | √ | √ | √ | √ |
| √ |
15）Receiver?Spurious?Response | √ | √ | √ |
|
| √ |
16）Receiver?sensitivity?level | √ | √ |
|
|
| √ |
17）Minimum?Input?Level | √ | √ |
|
|
| √ |
4.CE標準(LTE CA)
ETSI?EN?301908-13(3GPP?TS?36.521-1) |
測試項目 | Intra-Band? Contiguous? DL?CA?and?UL?CA | Intra-Band ?Contiguous? DL?CA?without?UL?CA | Intra-Band?Non-Contiguous? DL?CA?without?UL?CA | Inter-Band?? DL?CA?without?UL?CA |
1）Transmitter?Maximum?Output?Power | √ |
|
|
|
2）Transmitter?Minimum?Output?Power | √ |
|
|
|
3）Transmitter?Spectrum?Emission?Mask | √ |
|
|
|
4）Transmitter?Adjacent?Channel?Leakage?Power?Ratio | √ |
|
|
|
5）Transmitter?Spurious?Emissions | √ |
|
|
|
6）Occupied?Channel?Bandwidth | √ |
|
|
|
7）Transmitter?unwanted?emission?in?the?OOB?domain | √ |
|
|
|
8）Transmitter?unwanted?emission?in?the?spurious?domain | √ |
|
|
|
9）Receiver?spurious?emissions | √ | √ | √ | √ |
10）Receiver?Adjacent?Channel?Selectivity(ACS) | √ | √ | √ | √ |
11）Blocking?Characteristics(In-Band) | √ | √ | √ | √ |
12）Blocking?Characteristics(Out-Of-Band) | √ | √ | √ | √ |
13）Blocking?Characteristics(Narrow-Band) | √ | √ | √ | √ |
14）Receiver?Intermodulation?Characteristics | √ | √ | √ | √ |
15）Receiver?Spurious?Response | √ | √ | √ | √ |
16）Receiver?sensitivity?level | √ | √ | √ | √ |
17）Minimum?Input?Level | √ | √ | √ | √ |
5.CE標準(NR SA)
EN301908-25(3GPP?TS?38.521-1) |
測試項 | NR?SA | 射頻開關 | 模擬源 | 矢量源 | 頻譜儀 | 綜測儀 |
1）UE?maximum?output?power | √ | √ |
|
|
| √ |
2）Minimum?output?power | √ | √ |
|
|
| √ |
3）Spectrum?Emission?Mask | √ | √ |
|
|
| √ |
4）Adjacent?channel?leakage?ratio | √ | √ |
|
|
| √ |
5）General?spurious?emissions | √ | √ |
|
| √ | √ |
6）Tramsmit?intermodulation | √ | √ |
|
| √ | √ |
7）Spurious?emission?for?UE?co-existence | √ | √ |
|
| √ | √ |
8）Spurious?emissions | √ | √ |
|
| √ | √ |
9）Adjacent?channel?selectivity | √ | √ |
| √ |
| √ |
10）InBand?Blocking | √ | √ |
| √ |
| √ |
11）Out-of-band?blocking | √ | √ | √ |
|
| √ |
12）Narrow?band?blocking | √ | √ | √ |
|
| √ |
13）Intermodulation?characteristics | √ | √ | √ | √ |
| √ |
14）Spurious?response | √ | √ | √ |
|
| √ |
15）Reference?sensitivity | √ | √ |
|
|
| √ |
16）Maximum?input?level | √ | √ |
|
|
| √ |
6.CE標準(NR NSA)
EN301908-25(3GPP?TS?38.521-3) |
測試項 | NR?NSA | 射頻開關 | 模擬源 | 矢量源 | 頻譜儀 | 綜測儀 |
1）UE?maximum?output?power | √ | √ |
|
|
| √ |
2）Minimum?output?power | √ | √ |
|
|
| √ |
3）Spectrum?Emission?Mask | √ | √ |
|
|
| √ |
4）Adjacent?channel?leakage?ratio | √ | √ |
|
|
| √ |
5）General?spurious?emissions | √ | √ |
|
| √ | √ |
6）Tramsmit?intermodulation | √ | √ |
|
| √ | √ |
7）Spurious?emission?for?UE?co-existence | √ | √ |
|
| √ | √ |
8）Spurious?emissions | √ | √ |
|
| √ | √ |
9）Adjacent?channel?selectivity | √ | √ |
| √ |
| √ |
10）InBand?Blocking | √ | √ |
| √ |
| √ |
11）Out-of-band?blocking | √ | √ | √ |
|
| √ |
12）Narrow?band?blocking | √ | √ | √ |
|
| √ |
13）Intermodulation?characteristics | √ | √ | √ | √ |
| √ |
14）Spurious?response | √ | √ | √ |
|
| √ |
15）Reference?sensitivity | √ | √ |
|
|
| √ |
16）Maximum?input?level | √ | √ |
|
|
| √ |
7.CE標準(NR CA)
EN301908-25(3GPP?TS?38.521-1) |
測試項 | Intra-Band | Inter-Band | 射頻開關 | 模擬源 | 矢量源 | 頻譜儀 | 綜測儀 |
1）UE?maximum?output?power |
| √ | √ |
|
|
| √ |
2）Minimum?output?power |
| √ | √ |
|
|
| √ |
3）Spectrum?Emission?Mask |
| √ | √ |
|
|
| √ |
4）Adjacent?channel?leakage?ratio |
| √ | √ |
|
|
| √ |
5）General?spurious?emissions |
| √ | √ |
|
| √ | √ |
6）Tramsmit?intermodulation |
| √ | √ |
|
| √ | √ |
7）Spurious?emission?for?UE?co-existence |
| √ | √ |
|
| √ | √ |
8）Spurious?emissions | √ | √ | √ |
|
| √ | √ |
9）Adjacent?channel?selectivity | √ | √ | √ |
| √ |
| √ |
10）InBand?Blocking | √(FFS) |
| √ |
| √ |
| √ |
11）Out-of-band?blocking | √(FFS) |
| √ | √ |
|
| √ |
12）Narrow?band?blocking | √(FFS) |
| √ | √ |
|
| √ |
13）Spurious?response | √(FFS) |
| √ | √ |
|
| √ |
14）Reference?sensitivity | √ |
| √ |
|
|
| √ |
15）Maximum?input?level | √(FFS) | √(FFS) | √ |
|
|
| √ |
8.FCC標準(GSM)
FCC?Part22/24 |
測試項 | GSM | 射頻開關 | 頻譜儀 | 綜測儀 |
1）Conducted?Output?Power?and?ERP/EIRP | √ | √ |
| √ |
2）Peak-Average?Ratio | √ | √ | √ | √ |
3）26dB?Bandwidth | √ | √ | √ | √ |
4）99%?Occupied?Bandwidth | √ | √ | √ | √ |
5）Conducted?Band?Edge | √ | √ | √ | √ |
6）Conducted?Spurious?Emissions | √ | √ | √ | √ |
7）Frequency?Stability | √ | √ |
| √ |
9.FCC標準(WCDMA)
FCC?Part22/24/27 |
測試項 | WCDMA | 射頻開關 | 頻譜儀 | 綜測儀 |
1）Conducted?Output?Power?and?ERP/EIRP | √ | √ |
| √ |
2）Peak-Average?Ratio | √ | √ | √ | √ |
3）26dB?Bandwidth | √ | √ | √ | √ |
4）Occupied?Bandwidth | √ | √ | √ | √ |
5）Band?Edge?Emissions?at?Antenna?Terminal | √ | √ | √ | √ |
6）Extended?Band?Edge?Emissions?at?Antenna?Terminal | √ | √ | √ | √ |
7）Spurious?and?Harmonic?Emissions?at?Antenna?Terminal | √ | √ | √ | √ |
8）Frequency?Stability | √ | √ |
| √ |
10.FCC標準(LTE)
FCC?Part22/24/27 |
測試項 | LTE | 射頻開關 | 頻譜儀 | 綜測儀 |
1）Radiated?Power(ERP/EIRP) | √ | √ |
| √ |
2）Peak-Average?Ratio | √ | √ | √ | √ |
3）26dB?Bandwidth | √ | √ | √ | √ |
4）Occupied?Bandwidth | √ | √ | √ | √ |
5）Band?Edge?Emissions?at?Antenna?Terminal | √ | √ | √ | √ |
6）Extended?Band?Edge?Emissions?at?Antenna?Terminal | √ | √ | √ | √ |
7）Spurious?and?Harmonic?Emissions?at?Antenna?Terminal | √ | √ | √ | √ |
8）Frequency?Stability | √ | √ |
| √ |
11.FCC標準(LTE CA)
FCC?Part22/24/27 |
測試項 | IntraBand?Contiguous?DL?CA?and?UL?CA | IntraBand?Contiguous?DL?CA?without?UL?CA | InterBand??DL?CA?without?UL?CA | Intra-Band?NonContiguous?DL?CA?without?UL?CA |
1）Radiated?Power(ERP/EIRP) | √ |
|
|
|
2）Peak-Average?Ratio | √ |
|
|
|
3）26dB?Bandwidth | √ |
|
|
|
4）Occupied?Bandwidth | √ |
|
|
|
5）Band?Edge?Emissions?at?Antenna?Terminal | √ |
|
|
|
6）Extended?Band?Edge?Emissions?at?Antenna?Terminal | √ |
|
|
|
7）Spurious?and?Harmonic?Emissions?at?Antenna?Terminal | √ |
|
|
|
8）Frequency?Stability | √ |
|
|
|
12.FCC標準(NR SA)
FCC?Part?24?Subpart?E |
測試項 | NR?SA | 射頻開關 | 頻譜儀 | 綜測儀 |
1）Power | √ | √ |
| √ |
2）PeakToAverage?Ratio | √ | √ | √ | √ |
3）Occupied?Bandwidth | √ | √ |
| √ |
4）Band?Edge | √ | √ | √ | √ |
5）OutOfBand?Emissions | √ | √ | √ | √ |
6）Frequency?Stability | √ | √ |
| √ |
13.FCC標準(NR NSA)
FCC?Part?24?Subpart?E |
測試項 | NR?NSA | 射頻開關 | 頻譜儀 | 綜測儀 |
1）Power | √ | √ |
| √ |
2）PeakToAverage?Ratio | √ | √ | √ | √ |
3）Occupied?Bandwidth | √ | √ |
| √ |
4）Band?Edge | √ | √ | √ | √ |
5）OutOfBand?Emissions | √ | √ | √ | √ |
6）Frequency?Stability | √ | √ |
| √ |
14.FCC標準(NR CA)
FCC?Part?24?Subpart?E |
測試項 | NR?CA | 射頻開關 | 頻譜儀 | 綜測儀 |
1）Power | √ | √ |
| √ |
2）PeakToAverage?Ratio | √ | √ | √ | √ |
3）Occupied?Bandwidth | √ | √ |
| √ |
4）Band?Edge | √ | √ | √ | √ |
5）OutOfBand?Emissions | √ | √ | √ | √ |
6）Frequency?Stability | √ | √ |
| √ |
15.SRRC標準——GSM
YD/T?1215-2006 |
測試項 | GSM | 射頻開關 | 模擬源 | 矢量源 | 頻譜儀 | 綜測儀 |
1）頻率相位誤差 | √ | √ |
|
|
| √ |
2）發射機輸出功率 | √ | √ |
|
|
| √ |
3）發射機功率控制 | √ | √ |
|
|
| √ |
4）突發時間功率關系 | √ | √ |
|
|
| √ |
5）發射調制譜 | √ | √ |
|
|
| √ |
6）發射開關譜 | √ | √ |
|
|
| √ |
7）傳導發射雜散 | √ | √ |
|
| √ | √ |
8）參考靈敏度 | √ | √ |
|
|
| √ |
16.SRRC標準(WCDMA)
YD/T?1548.1-2009/3GPP?TS?34.121-1 |
測試項 | WCDMA | 射頻開關 | 模擬源 | 矢量源 | 頻譜儀 | 綜測儀 |
1）最大發射功率 | √ | √ |
|
|
| √ |
2）矢量幅度誤差 | √ | √ |
|
|
| √ |
3）峰值碼域誤差 | √ | √ |
|
|
| √ |
4）頻率相位誤差 | √ | √ |
|
|
| √ |
5）鄰道泄漏功率比 | √ | √ |
|
|
| √ |
6）發射模板 | √ | √ |
|
|
| √ |
7）最小輸出功率 | √ | √ |
|
|
| √ |
8）上行閉環功率控制 | √ | √ |
|
|
| √ |
9）上行開環功率控制 | √ | √ |
|
|
| √ |
10）發射開關時間模板 | √ | √ |
|
|
| √ |
11）發射機互調 | √ | √ | √ | √ |
| √ |
12）發射雜散 | √ | √ |
|
| √ | √ |
13）輸出功率的失步處理(連續發射) | √ | √ |
|
|
| √ |
14）發射關功率 | √ | √ |
|
|
| √ |
15）占用帶寬 | √ | √ |
|
|
| √ |
16）輸出功率的失步處理(不連續發射) | √ | √ |
|
|
| √ |
17）相位非連續性 | √ | √ |
|
|
| √ |
18）參考靈敏度電平 | √ | √ |
|
|
| √ |
19）最大輸入電平 | √ | √ |
|
|
| √ |
20）鄰道選擇性 | √ | √ |
| √ |
| √ |
21）帶內阻塞 | √ | √ |
| √ |
| √ |
22）帶外阻塞 | √ | √ | √ |
|
| √ |
23）窄帶阻塞 | √ | √ | √ |
|
| √ |
24）雜散響應 | √ | √ | √ |
|
| √ |
25）接收機互調 | √ | √ | √ | √ |
| √ |
26）接收雜散 | √ | √ |
|
| √ | √ |
17.SRRC標準(LTE)
YD/T?2576.2-2013/YD/T?2578.2-2013 |
測試項 | WCDMA | 射頻開關 | 模擬源 | 矢量源 | 頻譜儀 | 綜測儀 |
1）最大發射功率 | √ | √ |
|
|
| √ |
2）最大發射功率回退 | √ | √ |
|
|
| √ |
3）額外最大發射功率回退 | √ | √ |
|
|
| √ |
4）配置UE發射功率 | √ | √ |
|
|
| √ |
5）最小發射功率 | √ | √ |
|
|
| √ |
6）矢量幅度誤差 | √ | √ |
|
|
| √ |
7）PUSCH跳變周期矢量幅度誤差 | √ | √ |
|
|
| √ |
8）頻率相位誤差 | √ | √ |
|
|
| √ |
9）占用帶寬 | √ | √ |
|
|
| √ |
10）鄰道泄漏功率比 | √ | √ |
|
|
| √ |
11）發射模板 | √ | √ |
|
|
| √ |
12）額外發射模板 | √ | √ |
|
|
| √ |
13）絕對功率控制容限 | √ | √ |
|
|
| √ |
14）相對功率控制容限 | √ | √ |
|
|
| √ |
15）總功率控制容限 | √ | √ |
|
|
| √ |
16）載波泄漏 | √ | √ |
|
|
| √ |
17）帶內雜散 | √ | √ |
|
|
| √ |
18）EVM均衡器頻譜平坦度 | √ | √ |
|
|
| √ |
19）發射開關時間模板 | √ | √ |
|
|
| √ |
20）PRACH時間模板 | √ | √ |
|
|
| √ |
21）SRS時間模板 | √ | √ |
|
|
| √ |
22）發射機互調 | √ | √ |
|
|
| √ |
23）發射雜散 | √ | √ |
|
| √ | √ |
24）額外發射雜散 | √ | √ |
|
| √ | √ |
25）發射關功率 | √ | √ |
|
|
| √ |
26）UE共存雜散輻射帶 | √ | √ |
|
| √ | √ |
18.SRRC標準(LTE CA)
YD/T?2576.2-2013/YD/T?2578.2-2013 |
測試項 | WCDMA | 射頻開關 | 模擬源 | 矢量源 | 頻譜儀 | 綜測儀 |
1）最大發射功率 | √ | √ |
|
|
| √ |
2）最大發射功率回退 | √ | √ |
|
|
| √ |
3）額外最大發射功率回退 | √ | √ |
|
|
| √ |
4）配置UE發射功率 | √ | √ |
|
|
| √ |
5）最小發射功率 | √ | √ |
|
|
| √ |
6）矢量幅度誤差 | √ | √ |
|
|
| √ |
7）PUSCH跳變周期矢量幅度誤差 | √ | √ |
|
|
| √ |
8）頻率相位誤差 | √ | √ |
|
|
| √ |
9）占用帶寬 | √ | √ |
|
|
| √ |
10）鄰道泄漏功率比 | √ | √ |
|
|
| √ |
11）發射模板 | √ | √ |
|
|
| √ |
12）額外發射模板 | √ | √ |
|
|
| √ |
13）絕對功率控制容限 | √ | √ |
|
|
| √ |
14）相對功率控制容限 | √ | √ |
|
|
| √ |
15）總功率控制容限 | √ | √ |
|
|
| √ |
16）載波泄漏 | √ | √ |
|
|
| √ |
17）帶內雜散 | √ | √ |
|
|
| √ |
18）EVM均衡器頻譜平坦度 | √ | √ |
|
|
| √ |
19）發射開關時間模板 | √ | √ |
|
|
| √ |
20）PRACH時間模板 | √ | √ |
|
|
| √ |
21）SRS時間模板 | √ | √ |
|
|
| √ |
22）發射機互調 | √ | √ |
|
|
| √ |
23）發射雜散 | √ | √ |
|
| √ | √ |
24）額外發射雜散 | √ | √ |
|
| √ | √ |
25）發射關功率 | √ | √ |
|
|
| √ |
26）UE共存雜散輻射帶 | √ | √ |
|
| √ | √ |
19.SRRC標準(NR SA)
GB/T?12572-2008(3GPP?TS?38.521-1) |
測試項 | NR?SA | 射頻開關 | 模擬源 | 矢量源 | 頻譜儀 | 綜測儀 |
1）最大發射功率 | √ | √ |
|
|
| √ |
2）最大發射功率回退 | √ | √ |
|
|
| √ |
3）額外最大發射功率回退 | √ | √ |
|
|
| √ |
4）配置UE發射功率 | √ | √ |
|
|
| √ |
5）最小發射功率 | √ | √ |
|
|
| √ |
6）矢量幅度誤差 | √ | √ |
|
|
| √ |
7）頻率相位誤差 | √ | √ |
|
|
| √ |
8）占用帶寬 | √ | √ |
|
|
| √ |
9）鄰道泄漏功率比 | √ | √ |
|
|
| √ |
10）發射模板 | √ | √ |
|
|
| √ |
11）額外發射模板 | √ | √ |
|
|
| √ |
12）絕對功率控制容限 | √ | √ |
|
|
| √ |
13）相對功率控制容限 | √ | √ |
|
|
| √ |
14）總功率控制容限 | √ | √ |
|
|
| √ |
15）載波泄漏 | √ | √ |
|
|
| √ |
16）帶內雜散 | √ | √ |
|
|
| √ |
17）EVM均衡器頻譜平坦度 | √ | √ |
|
|
| √ |
18）發射開關時間模板 | √ | √ |
|
|
| √ |
19）PRACH時間模板 | √ | √ |
|
|
| √ |
20）SRS時間模板 | √ | √ |
|
|
| √ |
21）發射機互調 | √ | √ |
|
|
| √ |
22）發射雜散 | √ | √ |
|
| √ | √ |
23）額外發射雜散 | √ | √ |
|
| √ | √ |
24）發射關功率 | √ | √ |
|
|
| √ |
25）UE共存雜散輻射帶 | √ | √ |
|
| √ | √ |
20.SRRC標準(NR NSA)
GB/T?12572-2008(3GPP?TS?38.521-3) |
測試項 | NR?NSA | 射頻開關 | 模擬源 | 矢量源 | 頻譜儀 | 綜測儀 |
1）最大發射功率 | √ | √ |
|
|
| √ |
2）最大發射功率回退 | √ | √ |
|
|
| √ |
3）額外最大發射功率回退 | √ | √ |
|
|
| √ |
4）配置UE發射功率 | √ | √ |
|
|
| √ |
5）最小發射功率 | √ | √ |
|
|
| √ |
6）矢量幅度誤差 | √ | √ |
|
|
| √ |
7）頻率相位誤差 | √ | √ |
|
|
| √ |
8）占用帶寬 | √ | √ |
|
|
| √ |
9）鄰道泄漏功率比 | √ | √ |
|
|
| √ |
10）發射模板 | √ | √ |
|
|
| √ |
11）額外發射模板 | √ | √ |
|
|
| √ |
12）絕對功率控制容限 | √ | √ |
|
|
| √ |
13）相對功率控制容限 | √ | √ |
|
|
| √ |
14）總功率控制容限 | √ | √ |
|
|
| √ |
15）載波泄漏 | √ | √ |
|
|
| √ |
16）帶內雜散 | √ | √ |
|
|
| √ |
17）EVM均衡器頻譜平坦度 | √ | √ |
|
|
| √ |
18）發射開關時間模板 | √ | √ |
|
|
| √ |
19）PRACH時間模板 | √ | √ |
|
|
| √ |
20）SRS時間模板 | √ | √ |
|
|
| √ |
21）發射機互調 | √ | √ |
|
|
| √ |
22）發射雜散 | √ | √ |
|
| √ | √ |
23）額外發射雜散 | √ | √ |
|
| √ | √ |
24）發射關功率 | √ | √ |
|
|
| √ |
25）UE共存雜散輻射帶 | √ | √ |
|
| √ | √ |
21.SRRC標準(NR CA)
GB/T?12572-2008(3GPP?TS?38.521-1) |
測試項 | Intra-Band | Inter-Band | 射頻開關 | 模擬源 | 矢量源 | 頻譜儀 | 綜測儀 |
1）最大發射功率 |
| √ | √ |
|
|
| √ |
2）最大發射功率回退 | √(FFS) | √(FFS) | √ |
|
|
| √ |
3）額外最大發射功率回退 | √(FFS) | √(FFS) | √ |
|
|
| √ |
4）配置UE發射功率 | √(FFS) | √ | √ |
|
|
| √ |
5）最小發射功率 |
| √ | √ |
|
|
| √ |
6）矢量幅度誤差 |
| √ | √ |
|
|
| √ |
7）頻率相位誤差 |
| √ | √ |
|
|
| √ |
8）占用帶寬 |
| √ | √ |
|
|
| √ |
9）鄰道泄漏功率比 |
| √ | √ |
|
|
| √ |
10）發射模板 |
| √ | √ |
|
|
| √ |
11）載波泄漏 |
| √ | √ |
|
|
| √ |
12）帶內雜散 |
| √ | √ |
|
|
| √ |
13）發射開關時間模板 |
| √ | √ |
|
|
| √ |
14）發射機互調 |
| √ | √ |
|
|
| √ |
15）發射雜散 |
| √ | √ |
|
| √ | √ |
16）發射關功率 |
| √ | √ |
|
|
| √ |
17）UE共存雜散輻射帶 |
| √ | √ |
|
| √ | √ |
七、軟件介紹
1. 軟件主界面
2.、設備列表
3.校準
4.工具——射頻開關
5.測試產品——系數
6.測試產品——報告
7.一鍵自動化測試和報告生成、客戶可自行設計報告，并支持ExcelPDF、Word等多種報告格式。
8.測試產品——測試計劃
9.部分測試項
10.測試項可編輯
11.Band
2G GSM
3G WCDMA
4G LTE(FDD|TDD)
4G? CA LTE(FDD|TDD)
NR SA
NR NSA
NR CA
12.支持?jǐn)?shù)據庫及數據分析
13.備份及全局變量
